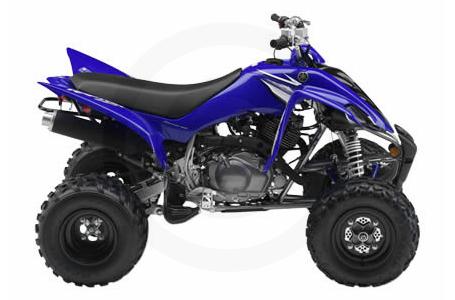

2008 Yamaha Raptor 350
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

An Impressive Lineage.


The Raptor 350 is a direct descendant of one of our best all-time sport ATV's, the Warrior 350.


We slimmed it down with a reconfigured geometry and lightened the load with a wealth of weight-saving components. The result is a ferocious but strikingly nimble beast with a voracious appetite for tough terrain and a highly evolved sense of adventure.


ELECTRIC START - Convenient push-button electric start works in any gear for easy operation.


AIR FILTER - Washable foam air filter provides excellent filtering qualities.


TRANSMISSION - Close-ratio, manual 6-speed transmission with reverse that can be selected from any forward gear.


BRAKES - Dual front 160mm hydraulic discs and single 225mm hydraulic rear disc. Low maintenance and powerful brakes consistent in all conditions.


PANEL - The dash panel features indicator lights for both neutral and reverse gear positions.

  • Toggle-type parking brake.
  • Wider foot-peg.
  • Shift lever shape.
  • Lightweight muffler.
  • Under-seat electronics bay.
  • Body style fender and bumpers.
  • Raptor type dual headlights with 30 watt krypton bulbs.
  • Raptor type tail light with brake light.
Specifications
  • Engine : 4-stroke, SOHC, air-cooled, single
  • Displacement : 348cc
  • Bore and Stroke : 83 x 64.5mm
  • Compression Ratio : 9.2:1
  • Carburetion : Mikuni BSR 36mm
  • Ignition : DC-CDI
  • Starting : electric
  • Lubrication : wet sump
  • Oil Capacity : 3.2 litres
  • Transmission : 6-forward, 1-reverse, manual
  • Final Drive : O ring chain
  • Suspension (Front) : double wishbone
  • Suspension (Rear) : Monocross
  • Brakes (Front) : dual hydraulic discs
  • Brakes (Rear) : single hydraulic disc
  • Tires (Front) : 21 x 7-10
  • Tires (Rear) : 20 x 10-9
  • Length : 1,770mm (69.7'')
  • Width : 1,095mm (43.1'')
  • Height : 1,080mm (42.5'')
  • Wheelbase : 1,210mm (47.6'')
  • Ground Clearance : 115mm (4.5'')
  • Seat Height : 820mm (32.3'')
  • Dry Weight : 170 kg (375 lb)
  • Fuel Capacity : 9 litres
  • Colour(s) : Racing Blue; Gray

Specifications

Engine
Engine Type 4-stroke, SOHC
Displacement 348 cc
Bore x Stroke 83 x 64.5 mm
Cylinders Single
Engine Cooling Air-Cooled
Starting System Ignition : DC-CDI; Starting : Electric
Chassis
Front Suspension Double wishbone
Front Brake Type Dual hydraulic discs
Front Tires 21 x 7-10
Rear Suspension Monocross
Rear Brake Type Single hydraulic disc
Rear Tires 20 x 10-9
Dimensions/Capacities
Dry Weight 170 kg (375 lbs.)
Fuel Capacity 9 l
Ground Clearance 115 mm (4.5 in.)
Machine Dimensions (LxWxH) 1770 x 1095 x 1080 mm (69.7" x 43.1" x 42.5")
Wheelbase 1,210 mm (47.6 in.)
Drive Train
Final Drive O ring chain
Transmission 6-forward, 1-reverse, manual
General
Colors Racing Blue; Gray

Compare Models

 Print








Year 2008
Manufacturer Yamaha
Model Raptor 350
Style Sport
MSRP* $7,299.00
Chassis
Front Suspension Double wishbone
Front Travel
Front Brake Type Dual hydraulic discs
Front Tires 21 x 7-10
Rear Suspension Monocross
Rear Travel
Rear Brake Type Single hydraulic disc
Rear Tires 20 x 10-9
Frame
Dimensions/Capacities
Dry Weight 170 kg (375 lbs.)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 9 l
Ground Clearance 115 mm (4.5 in.)
Machine Dimensions (LxWxH) 1770 x 1095 x 1080 mm (69.7" x 43.1" x 42.5")
Wheelbase 1,210 mm (47.6 in.)
Drive Train
Drive Train
Final Drive O ring chain
Transmission 6-forward, 1-reverse, manual
Engine
Engine Type 4-stroke, SOHC
Displacement 348 cc
Bore x Stroke 83 x 64.5 mm
Cylinders Single
Engine Cooling Air-Cooled
Fuel System
Starting System Ignition : DC-CDI; Starting : Electric
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Racing Blue; Gray
Warranty

Current Promotions
