$5,699.00

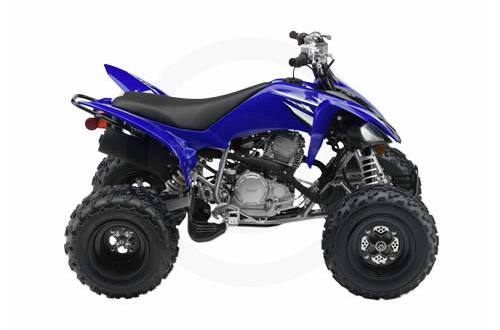

2008 Yamaha Canada Raptor 250
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

A new smaller Raptor for the Sport Enthusiast youth.


What defines a Raptor? Performance? Handling? Lightweight? Aggressive Styling?


The big bore Raptors are always at the top of the sales charts. Why? Because you ride in the real world, and the Raptor is still the best real world Sport ATV on the market. The key to this success... versatility. Not only do Raptors handle flat and offer powerful yet reliable engines. But a Raptor is comfortable enough for an all-day trail ride. And now... there's an all new Raptor 250. And it shares many of the key characteristics of it's big brothers the 350 and 700R. Lightweight. Flat handling. 4-stroke power and reliability. All-day comfort. And styling that will turn heads no matter where you ride. If you're looking for a place to start your adventure... this is it.


ENGINE - A durable air/oil cooled 249cc 4-stroke single overhead cam engine provides the power for the new Raptor 250. But don't let its size fool you. This smaller version of the Raptor 700R is fully capable. Like its big brother, the Raptor 250 has a smooth power curve with a strong focus on mid-range torque, for ease of use and improved trail performance.


ELECTRIC START - Convenient push-button electric start works in any gear for easy operation.


AIR FILTER - Washable foam air filter is reusable and provides excellent filtering qualities.


TRANSMISSION - Close-ratio, manual 5-speed transmission


BRAKES :
The hydraulic brakes get YFZ-style cross drilled rotors both front and back, with the same front master cylinder. This system provides plenty of stopping power regardless of the terrain you're traversing.
The popular toggle link-type parking brake lever found on the 250, with the auto-adjust feature that keeps maintenance to a minimum.


TIRES :
The Raptor 250 runs new specially designed Dunlop radials. Similar to the Raptor 700, this design offers improved cornering and added comfort to riders under a broad array of conditions.
And just like the 700, the tires are mounted on aluminum rims, which include a rolled edge for added durability.


STYLING - Just like the Raptor 700R, the Raptor 250 incorporates YFZ-styling, including fenders, seat, headlights, and ergos.

  • oil cooler for additional cooling capacity
  • valve timing set for low and midrange power
  • ceramic composite plated cylinder for improved engine durability
  • Dual 30 Watt halogen headlights for improved visibility
  • Hydraulic disc brakes for improved stopping power
  • Lightweight aluminum wheels
  • Eccentric chain adjuster for easy maintenance
  • internal rubber spacers in the crankcase to maintain oil level while going uphill
  • dust proof cover on Mikuni carburetor
  • "no tool" removable air filter for easy cleaning
  • new three expansion chamber muffler for less weight and reduced noise
  • high tension steel frame for increased strength and reduced weight
  • lightweight front and rear grab bars
  • durable plastic skid plates that won't rust for increased protection
  • New Dunlop sport tires designed for improved trail handling and ride comfort
  • Double wishbone front suspension with 10mm more travel than the Blaster 200
  • Link less Mono-Cross rear suspension for improved mass centralization
  • High rigidity brake calipers for improved braking performance
  • Full size Raptor 700R brake rotors for improved braking performance
  • Link type parking brake lever for convenient one handed operation
  • 9 litre fuel tank offers more range than Blaster 200
  • Agressive Raptor style front and rear fenders detach without disassembling electrical parts for air box.
Specifications
  • Engine : 4-stroke,SOHC,air/oil cooled, single
  • Displacement : 249cc
  • Bore and Stroke : 74.0 mm × 58.0 mm
  • Compression Ratio : 9.5 : 1
  • Carburetion : Mikuni BSR 29
  • Ignition : DC-C.D.I.
  • Starting : Electric Start
  • Transmission : 5-speed manual
  • Final Drive : Chain
  • Suspension (Front) : Independent Double Wishbone w/double tube front shocks, 7.5" travel;
  • Suspension (Rear) : Link less Mono-Cross rear suspension with aluminum swingarm, 7.9" travel;
  • Brakes (Front) : Dual hydraulic disc
  • Brakes (Rear) : Hydraulic disc
  • Tires (Front) : AT20X7-10 Radial
  • Tires (Rear) : AT19X10-9 Radial
  • Length : 1625mm
  • Width : 1070mm
  • Height : 1040mm
  • Wheelbase : 1110mm
  • Ground Clearance : 100mm / 195mm
  • Seat Height : 730mm
  • Dry Weight : 142kg
  • Fuel Capacity : 9 Liters
  • Colour(s) : Racing Blue; Gray

Specifications

Engine
Engine Type 4-stroke, SOHC
Displacement 249 cc
Bore x Stroke 74.0 × 58.0 mm
Cylinders Single
Engine Cooling Air/Oil Cooled
Starting System Ignition : DC-C.D.I.; Starting : Electric Start
Chassis
Front Suspension Independent Double Wishbone w/double tube front shocks,
Front Travel 7.5 in. travel
Front Brake Type Dual hydraulic disc
Front Tires AT20X7-10 Radial
Rear Suspension Link less Mono-Cross rear suspension with aluminum swingarm,
Rear Travel 7.9 in. travel
Rear Brake Type Hydraulic disc
Rear Tires AT19X10-9 Radial
Dimensions/Capacities
Dry Weight 142 kg
Fuel Capacity 9 l
Ground Clearance 100 mm / 195 mm
Machine Dimensions (LxWxH) 1625 x 1070 x 1040 mm
Wheelbase 1110 mm
Drive Train
Final Drive Chain
Transmission 5-speed manual
General
Colors Racing Blue; Gray

Compare Models

 Print








Year 2008
Manufacturer Yamaha
Model Raptor 250
Style Sport
MSRP* $5,699.00
Chassis
Front Suspension Independent Double Wishbone w/double tube front shocks,
Front Travel 7.5 in. travel
Front Brake Type Dual hydraulic disc
Front Tires AT20X7-10 Radial
Rear Suspension Link less Mono-Cross rear suspension with aluminum swingarm,
Rear Travel 7.9 in. travel
Rear Brake Type Hydraulic disc
Rear Tires AT19X10-9 Radial
Frame
Dimensions/Capacities
Dry Weight 142 kg
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 9 l
Ground Clearance 100 mm / 195 mm
Machine Dimensions (LxWxH) 1625 x 1070 x 1040 mm
Wheelbase 1110 mm
Drive Train
Drive Train
Final Drive Chain
Transmission 5-speed manual
Engine
Engine Type 4-stroke, SOHC
Displacement 249 cc
Bore x Stroke 74.0 × 58.0 mm
Cylinders Single
Engine Cooling Air/Oil Cooled
Fuel System
Starting System Ignition : DC-C.D.I.; Starting : Electric Start
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Racing Blue; Gray
Warranty
