New Units » Yamaha » Grizzly 700 FI EPS SE
Model Quick Search

$13,049.00

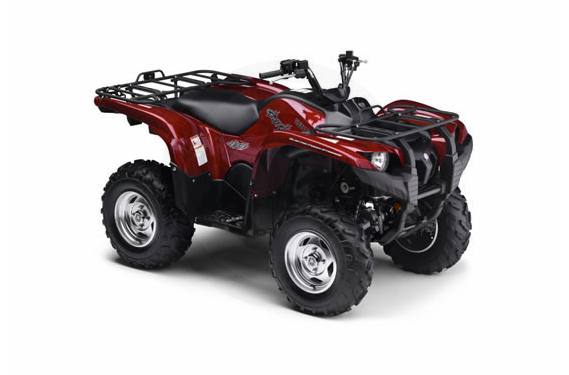

2009 Yamaha Grizzly 700 FI EPS SE
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • Raptor based 686cc fuel injected engine.
  • Electronic Power Steering (EPS)
  • 4-wheel disc brakes
Engine
  • Engine: 4-stroke, SOHC, liquid cooled, 4-valve, single
  • Displacement: 686 cc
  • Bore and Stroke: 102 x 84 mm
  • Compression Ratio: 9.2: 1
  • Carburetion: Mikuni Electronic Fuel Injection w/44mm Big Bore throttle bodies and TPS
  • Ignition: computerized DC-CDI
  • Starting: electric w/auto-decompression
  • Lubrication: wet sump
  • Oil Capacity: 2.4L
  • Transmission: Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
  • Final Drive: On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
Chassis
  • Suspension (Front): independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
  • Suspension (Rear): independent, reverse mounted dual A-arm with sway bar, adjustable shocks
  • Brakes (Front): Hydraulic Discs
  • Brakes (Rear): Hydraulic Discs
  • Tires (Front): Dunlop KT421 tubeless, AT25 x 8-12
  • Tires (Rear): Dunlop KT425 tubeless, AT25 x 10-12
Critical Data
  • Length: 2065 mm (81.3")
  • Width: 1180 mm (46.5")
  • Height: 1240 mm (48.8")
  • Wheelbase: 1250 mm (49.2")
  • Ground Clearance: 300 mm (11.8")
  • Seat Height: 905 mm (35.6")
  • Dry Weight: 272 kg (600 lb)
  • Fuel Capacity: 20 litres (5.3 U.S. gal)
  • Colour(s): Red Midnight Armour, Black Midnight Armour
Additional Features
  • Roller bearing rocker arms for reduced friction and improved engine performance
  • Carburized Chrome-Moly connecting rod for improved durability
  • Airbox design has centrifugal debris trap to improve air flow
  • Flat type foam air filter for easy cleaning
  • Straight drive shaft layout for reduced vibration and improved durability
  • Gull-wing front a-arms for improved ground clearance
  • Air cushion seat to provide comfort on those long rides.
  • Floor boardwith large holes for mud evacuation, and special rugs to avoid buildup from underneath.
  • Water resistant storage
  • Centralize wiring layout, positioned for improved protection against the elements.
  • LCD Gauge includes Odometer, Trip 1, Trip 2, Clock, Fuel gauge and Gear position
  • Warning indicators: Engine, Water Temp., Reverse, Neutral, Parking, High Range, Low Range and LCD Drive / Differential Lock map .
  • 35W Halogen headlight bulbs
  • Neodymium hi-power magnet for improved output, charging capacity and light weight.
  • Forged Aluminum steering knuckle
  • Gate type transmission shifter for improved shift feel.
  • Cartridge type oil filter located to the front of the engine for improved cooling and simplified maintenance
  • Carburized Chrome-Moly connecting rod for improved durability

Specifications

Engine
Engine Type 4-stroke, SOHC, liquid cooled, 4-valve
Displacement 686 cc
Bore x Stroke 102 x 84 mm
Cylinders Single
Engine Cooling Liquid
Fuel System Mikuni Electronic Fuel Injection w/44 mm Big Bore throttle bodies and TPS
Starting System Electric w/auto-decompression
Chassis
Front Suspension Independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
Front Brake Type Hydraulic Discs
Front Tires Dunlop KT421 tubeless, AT25 x 8-12
Rear Suspension Independent, reverse mounted dual A-arm with sway bar, adjustable shocks
Rear Brake Type Hydraulic Discs
Rear Tires Dunlop KT425 tubeless, AT25 x 10-12
Dimensions/Capacities
Dry Weight 600 lbs (272 kg)
Fuel Capacity 5.3 gal (20 l)
Ground Clearance 11.8 in. (300 mm)
Machine Dimensions (LxWxH) 81.3 x 46.5 x 48.8 in. (2065 x 1180 x 1240 mm)
Wheelbase 49.2 in. (1250 mm)
Drive Train
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
General
Odometer LCD
Lighting 35W Halogen headlight bulbs
Colors Red Midnight Armour, Black Midnight Armour

Compare Models

 Print








Year 2009
Manufacturer Yamaha
Model Grizzly 700 FI EPS SE
Style Utility
MSRP* $13,049.00
Chassis
Front Suspension Independent, dual A-arm, with gull-wing lower A-arm, and adjustable shocks
Front Travel
Front Brake Type Hydraulic Discs
Front Tires Dunlop KT421 tubeless, AT25 x 8-12
Rear Suspension Independent, reverse mounted dual A-arm with sway bar, adjustable shocks
Rear Travel
Rear Brake Type Hydraulic Discs
Rear Tires Dunlop KT425 tubeless, AT25 x 10-12
Frame
Dimensions/Capacities
Dry Weight 600 lbs (272 kg)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 5.3 gal (20 l)
Ground Clearance 11.8 in. (300 mm)
Machine Dimensions (LxWxH) 81.3 x 46.5 x 48.8 in. (2065 x 1180 x 1240 mm)
Wheelbase 49.2 in. (1250 mm)
Drive Train
Drive Train
Final Drive On-command push button 2WD / 4WD / 4WD diff. lock, direct shaft drive
Transmission Ultramatic (sealed variable v-belt), w/ L-H-N-R and Park, 4-wheel full-time engine breaking
Engine
Engine Type 4-stroke, SOHC, liquid cooled, 4-valve
Displacement 686 cc
Bore x Stroke 102 x 84 mm
Cylinders Single
Engine Cooling Liquid
Fuel System Mikuni Electronic Fuel Injection w/44 mm Big Bore throttle bodies and TPS
Starting System Electric w/auto-decompression
Alternator
General
Speedometer
Tachometer
Odometer LCD
Lighting 35W Halogen headlight bulbs
Colors Red Midnight Armour, Black Midnight Armour
